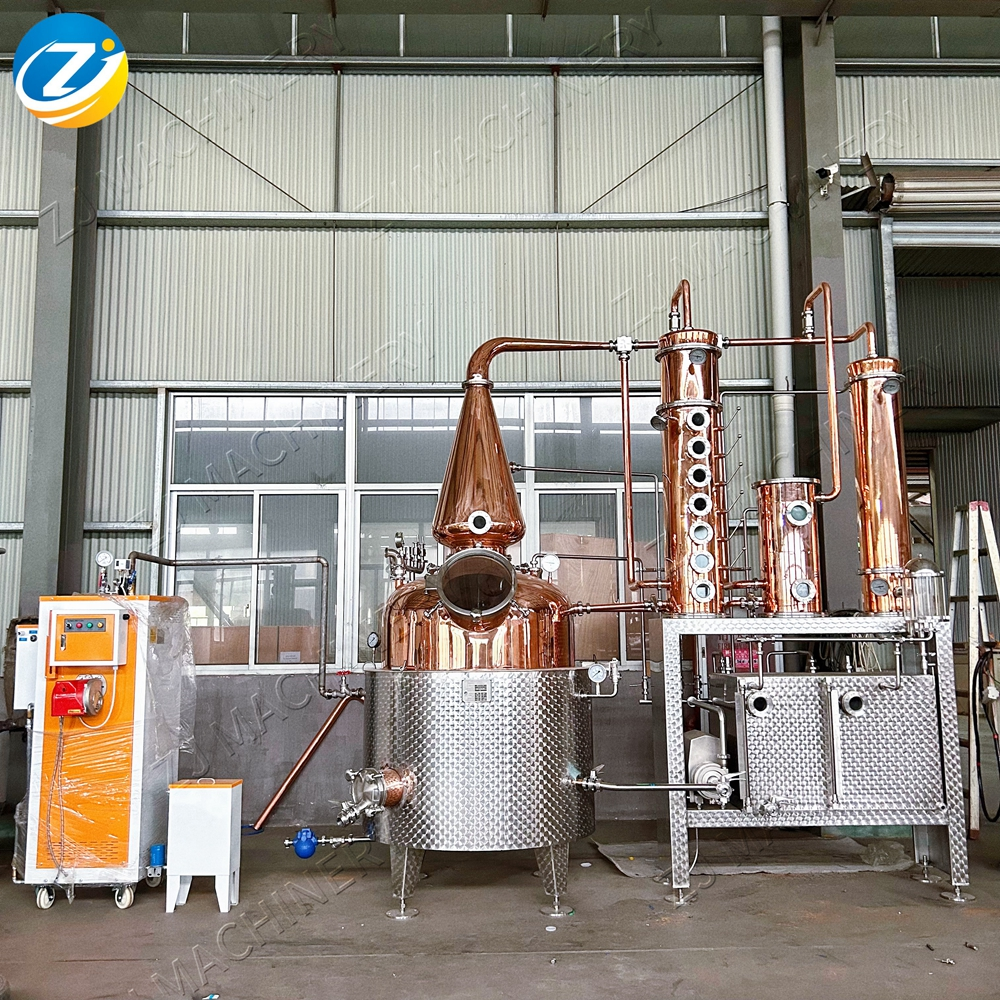

300L Hybrid Still

A hybrid still is a still that is capable of switching between running as a pot still and a column still as a hybrid still. It is a combination of a pot still and a column still, which are often linked together with piping, and diverter valves. Turning on or off certain valves permits different process paths, with each path containing its own distillation properties.

Hybrid stills can be used to produce a variety of different spirits which is why they are becoming increasingly popular with craft distilleries.

Capacity: 300L, customizable
Material: Red copper TP2, SUS304
Dimensions: Pot Diameter: 900mm, Height: 2900mm

Video Specification Detail Features

Video

Video of Hybrid Still



Specification

Specification of Hybrid Still

Item No.	ZJHS-300L
Product name	300L hybrid still
Capacity	300L, customizable
Material	Red copper TP2, SUS304
Dimensions	Pot Diameter: 900mm, Height: 2900mm
Thickness	3mm
Appication	To make spirit, such as whiskey, brandy, gin, vodka, etc

Detail

Detail of Hybrid Still

01

Three-layer kettle, with full copper interior, SUS304 heating jacket and insulation layer.
02

The shape of your spirit head can influence the character of your spirit. A tall head will produce a lighter flavor and a short head will carry over more flavor.

Features

Features of Hybrid Still

Hybrid stills offer versatility, functioning as a simple pot still, a stripping still, or a column still. As a type of commercial alcohol distilling equipment, they are designed for efficiency and adaptability. By using three-way valves, you can control the path of the spirit vapors, enabling you to bypass specific sections as needed.

For instance, when distilling gin, you would keep the gin basket open and pass the vapors through the first column or opt to use just four bubble plates. During a quick stripping run, you can bypass all components except the helmet and Lyne arm.
